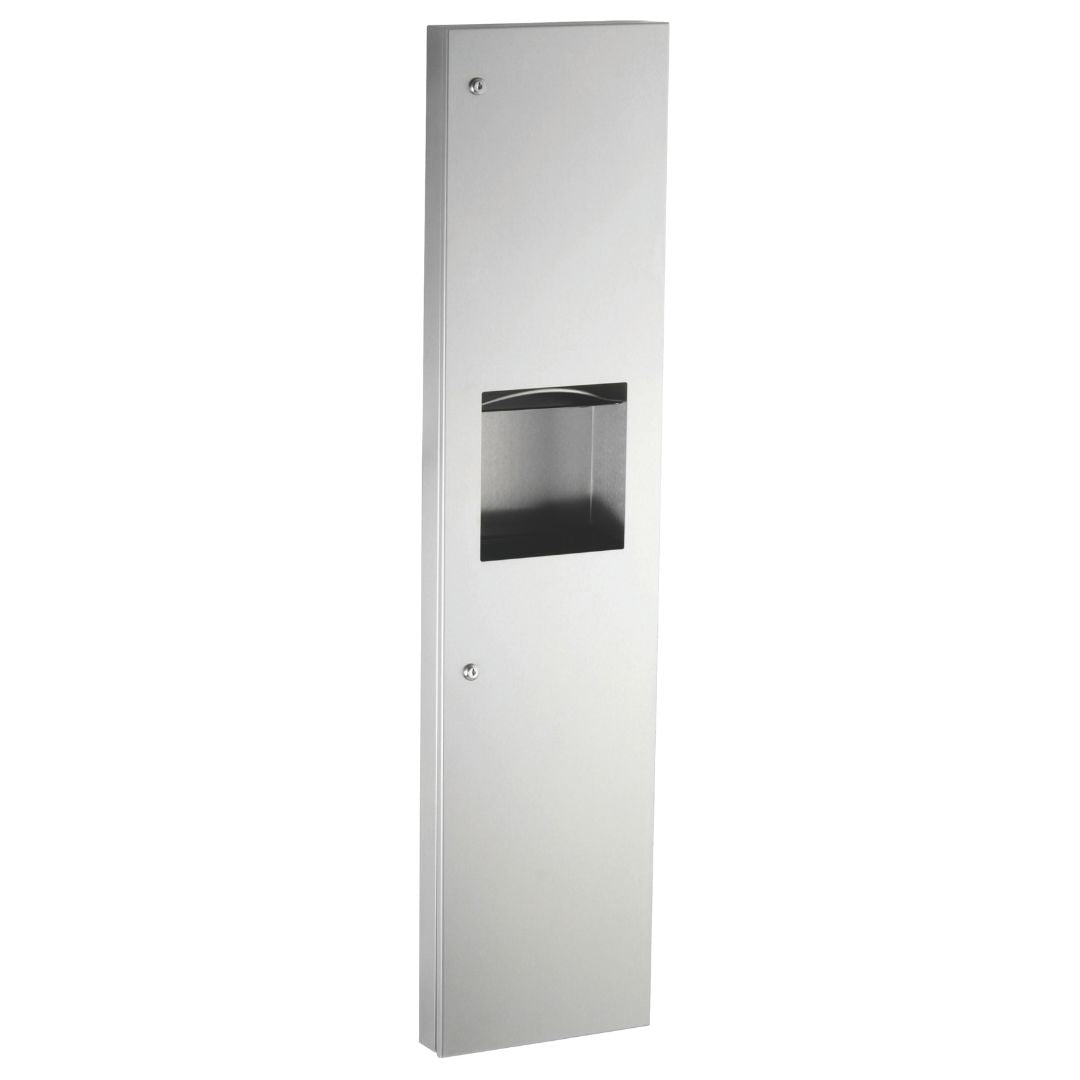

B-38032 Trimline Semi-Recessed 2-in-1 Paper Towel Dispenser and 24L Waste Container

Built in TowelMate®. Flush locks. Door has 90° return, conceals flange. Skirt for 100mm walls. Dispenses 600 C-fold, 800 multifold or 1100 single fold towels. Uncovered, removable, leak-proof 24-L waste container.

MATERIALS

• Cabinet — 18-8, type-304, heavy-gauge stainless steel. All-welded construction.

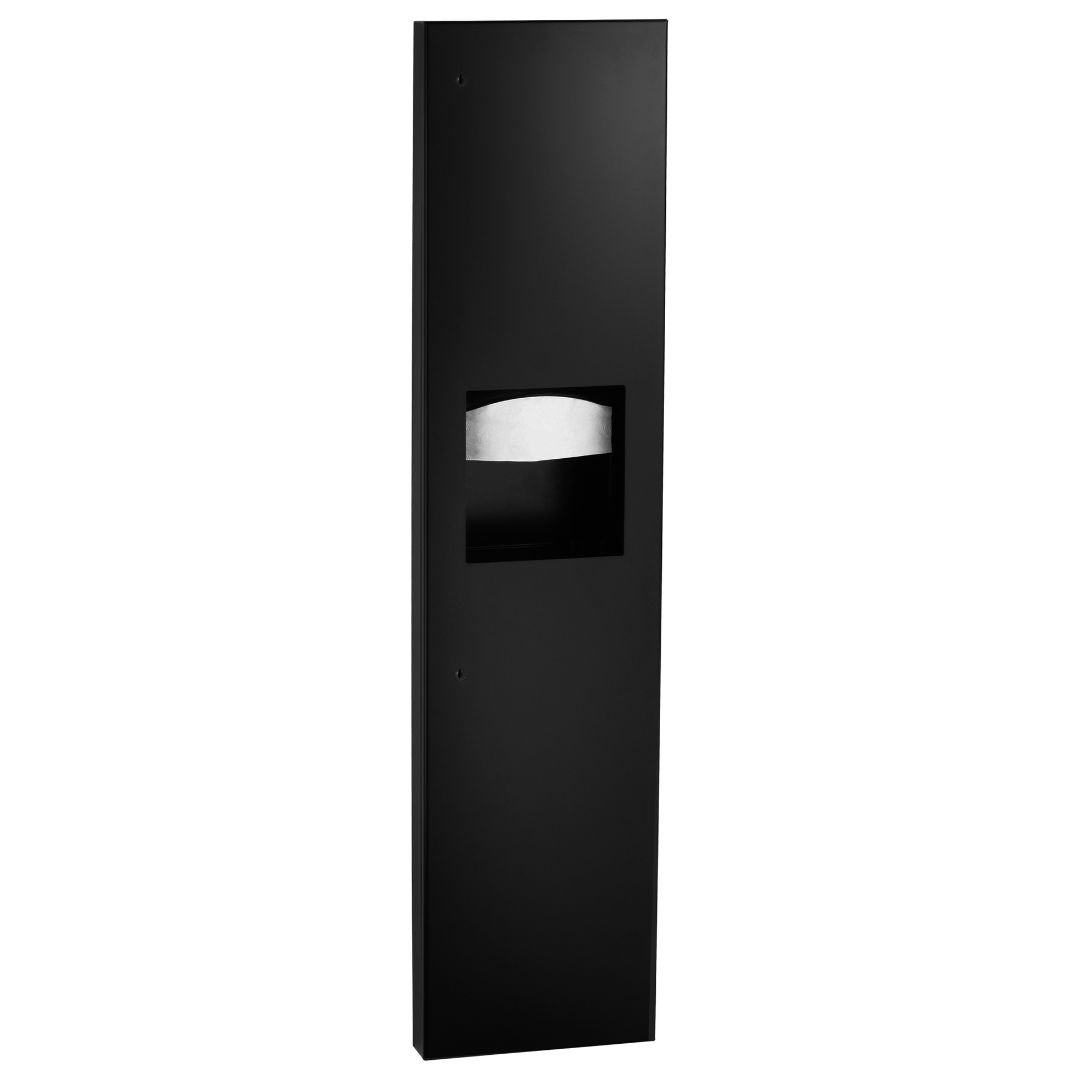

• Door — 18-8, type-304, 18-gauge (1.2mm) stainless steel with satin-finish or matte black, as specified. 14mm 90° return for maximum rigidity. Secured to cabinet with a concealed, full-length, stainless steel piano-hinge. Equipped with stainless steel cable door-swing limiter and two tumbler locks keyed like other Bobrick washroom accessories. Tumbler locks flush with the door - no protrusion.
• Skirt — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish or matte black, as specified.
• Paper Towel Dispenser — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish or matte black, as specified. Rounded towel tray has hemmed opening to dispense paper towel without tearing. Capacity: 600 C-fold, 800 multifold, or 1100 single fold paper towels. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing.
• TowelMate® Towel Rod Assembly —  Consisting of a round Nylon Rod and (2) stainless steel Rod Screws for attachment, is field replaceable. Stainless steel Stop Screws (2) lock TowelMate Rod assembly in place.
• Waste Container — Leakproof, rigid molded plastic. Removable for servicing. Capacity: 24-L.

OPERATION
Paper towel dispenser is adjustable to dispense C-fold, multifold, or singlefold paper towels without use of additional adapters or towel trays. To service waste receptacle, unlock door with key provided and remove waste container. Cable door-swing limiter prevents damage to washroom accessories and walls.

INSTALLATION
Provide framed rough wall opening 292 x 1362mm. Minimum recessed depth required from finish face of wall is 95mm. Allow clearance for construction features that may protrude into rough wall opening from opposite wall. If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between flange and finish face of wall. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure unit with #8 x 4.2 x 32mm sheet-metal screws (not furnished).

SPECIFICATION
Semi-recessed paper towel dispenser and waste receptacle shall be type-304 stainless steel; all-welded construction. Exposed surfaces shall have satin finish or matte black, as specified. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time. Door with 14mm 90° return shall be secured to cabinet with a concealed, full-length, stainless steel piano-hinge and equipped with a stainless steel cable door-swing limiter and two tumbler locks. Tumbler locks flush with the door - no protrusion. Paper towel dispenser shall be capable of dispensing 600 C-fold, 800 multifold, or 1100 singlefold paper towels. Waste receptacle shall be furnished with a removable, leakproof, rigid molded plastic waste-container with a capacity of 24-L.
