B-7120 / B-7128 TrimLine Hand Dryer
Available
B-7120 / B-7128 TrimLine Hand Dryer - Brushed Satin is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- Just 100mm deep
- Recommended Ave Daily Use: 1,000+ (Extreme traffic)
- 622 dries possible per £1 spent on electricity^ compared to 143 dries per £1 spent on paper towels^^
- Steel cover secured with vandal resistant hex screws
- Quiet in operation at 71dB(A)
- 17 seconds dry time
- 10 year limited guarantee
- cULus Listed, VDE approved, CE marked and has ROHS
- IP21
Description
Description

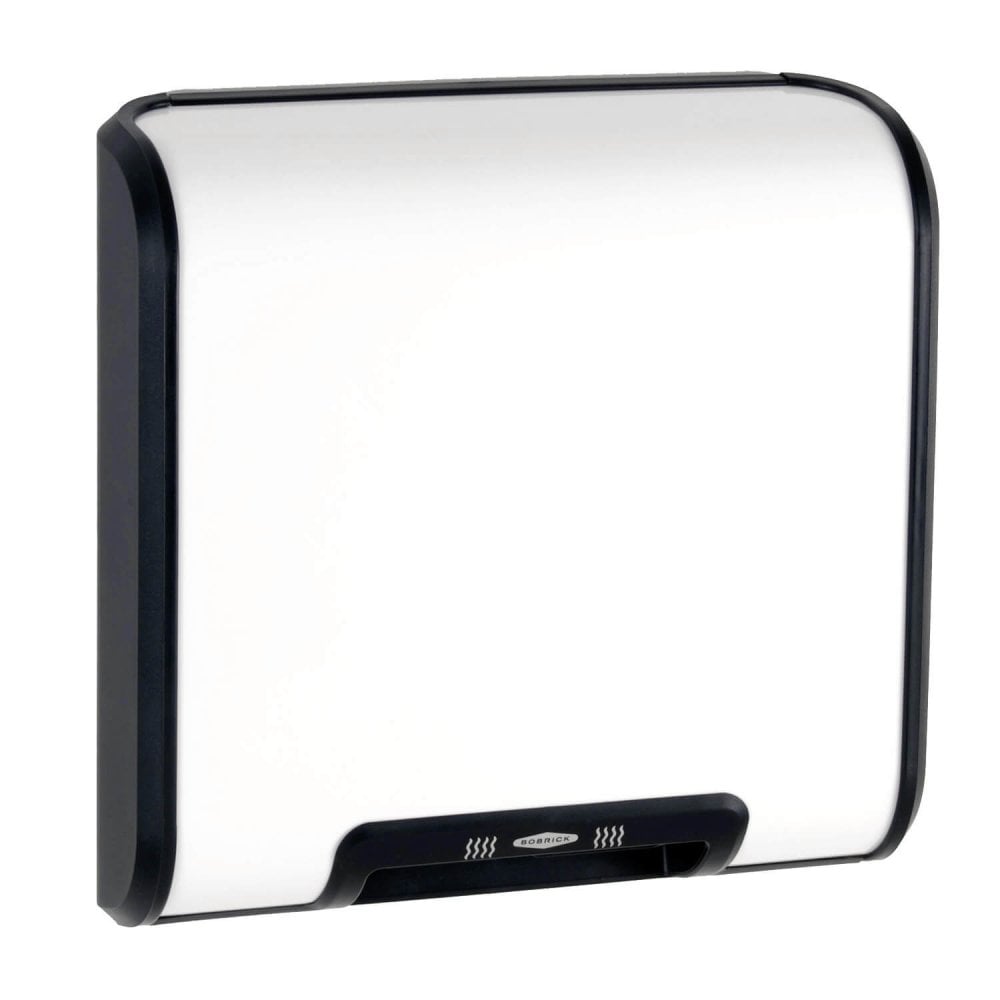

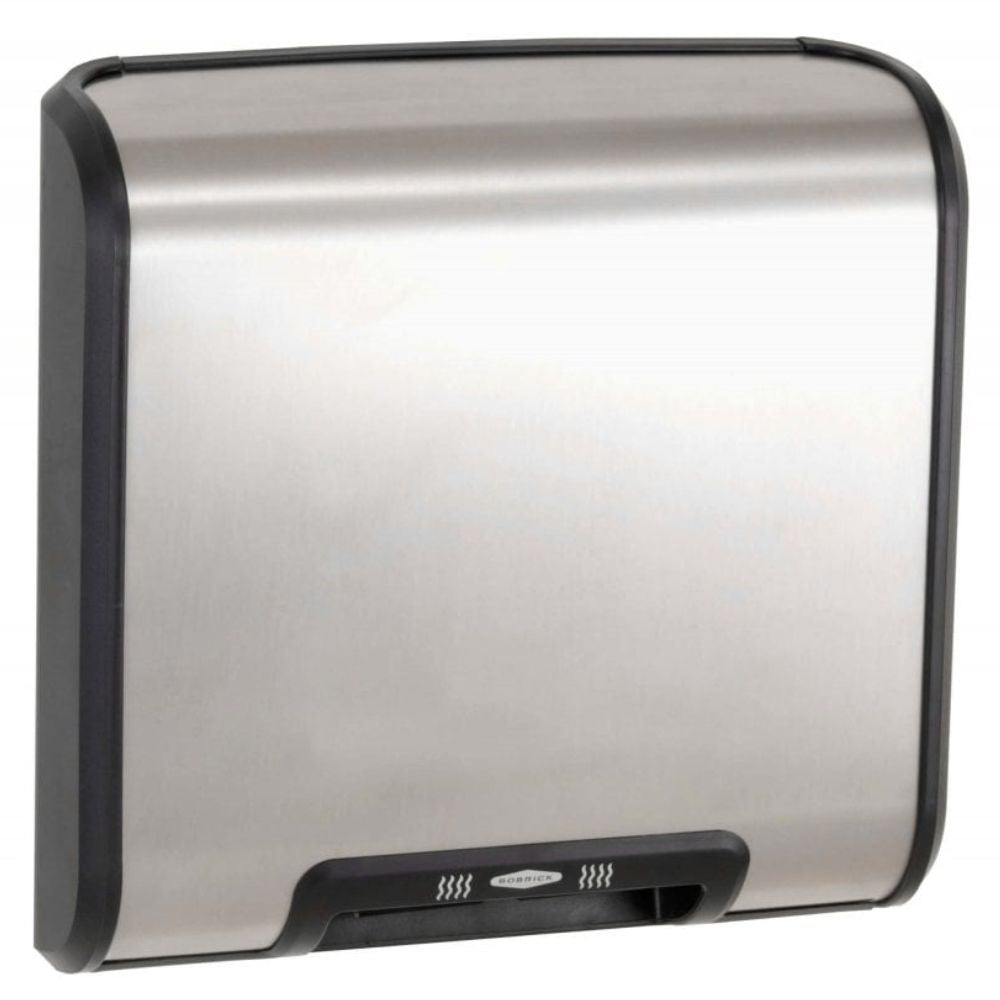

Bobrick B-7120 and B-7128 TrimLine Hand Dryer comes in a brushed satin stainless steel or white steel finish. Quiet in operation at just 71db(A) this vandal resistant hand dryer has a rated power of 1.7Kw. It projects just 100mm from the wall when installed. The cover brushed satin model is made from 22-gauge galvanised steel with exposed surface type-304 stainless steel with UL 94-5VA black plastic trim and side panels. The white model cover is made from 22-gauge mild steel zinc plated with high-gloss white epoxy paint finish with UL 94-5VA black plastic trim and side panels. The cover is secured to mounting base with two vandal-resistant, recessed hex screws. It provides an air volume of 130 m³/hr and an air velocity of 28m/s, bringing dry times of around 17 seconds. It is cULus Listed, VDE approved, CE marked and has ROHS. This is all back up by a 10 years limited guarantee.
^Based on £0.20 per kWh. ^^Based on average 143 paper towels per £1 spent, using 1 paper towel per dry.
Specifications
Specifications
Performance
| Adjustable settings | No |
|---|---|
| Air speed | 63 MPH |
| Dry time | 16 - 20 Seconds |
| Expected motor life | 17,000 Hours |
| Low noise | Yes |
| Motor speed | 8,200 RPM |
| Motor type | Brushed Motor |
| Recommended daily uses | 1000 (Extreme Traffic) |
Electrical
| Electrical supply frequency | 50 / 60 Hz |
|---|---|
| Electrical supply voltage | 230 - 240V |
| Energy per dry | 8.03 Wh |
| Heater element power | 1.55 kW |
| Ingress protection | IP21 |
| Isolation | - |
| Rated power | 1.7 kW |
Guarantee
| As standard | 10 Years |
|---|---|
| Extended enhanced available | No |
| Type | Parts and Labour |
Dimensions and Weight
| Depth | 100 mm |
|---|---|
| Height | 345 mm |
| Net weight | 5.2 Kg |
| Packaging depth | - |
| Packaging height | - |
| Packaging width | - |
| Packed weight | - |
| Width | 350 mm |
Construction
| Antibacterial additives | No |
|---|---|
| Cover material | Stainless steel |
| Finishes available | White, Brushed |
| Hepa filter | No |
| Notable extras | 10cm depth |
Accreditations
| Certificates | CE |
|---|
