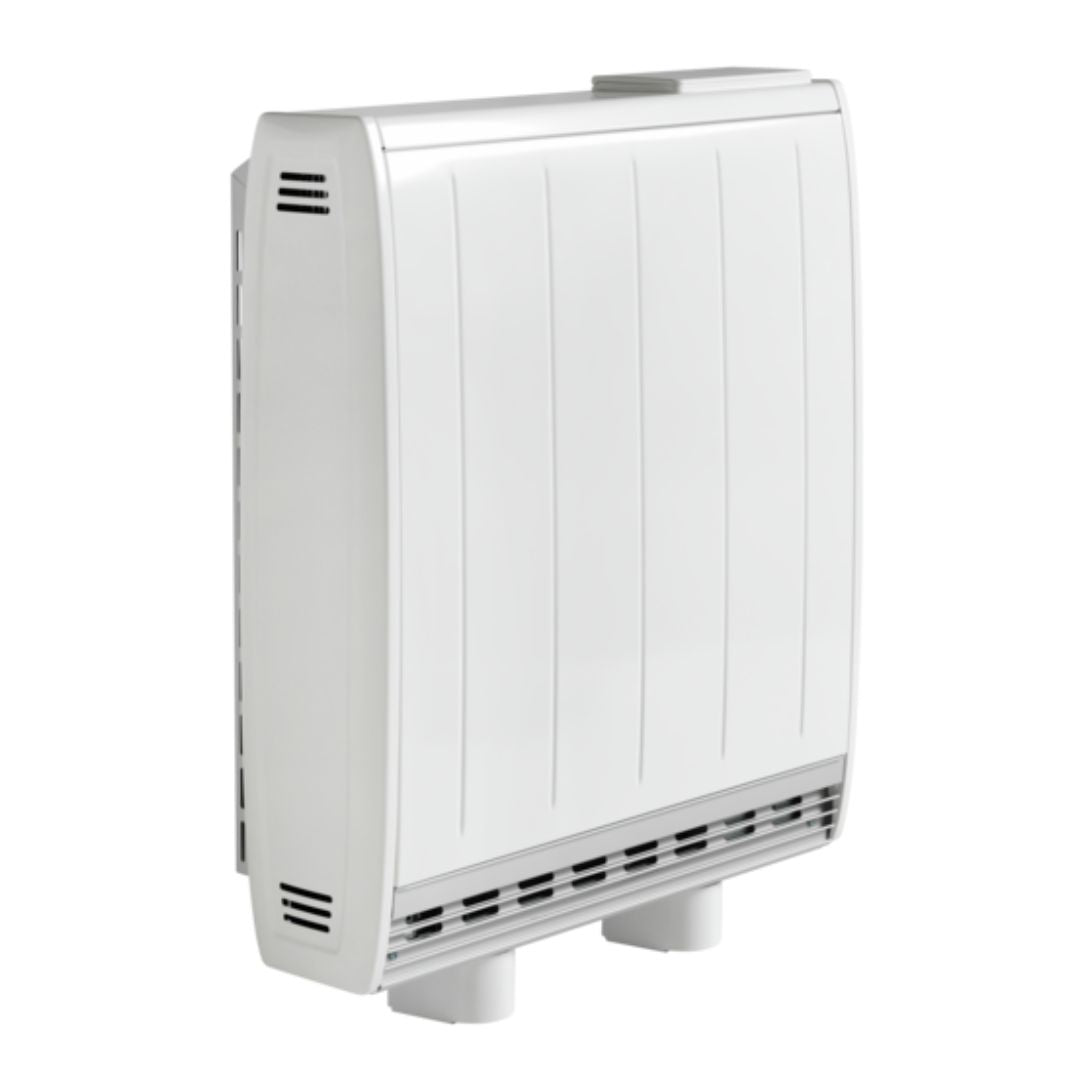

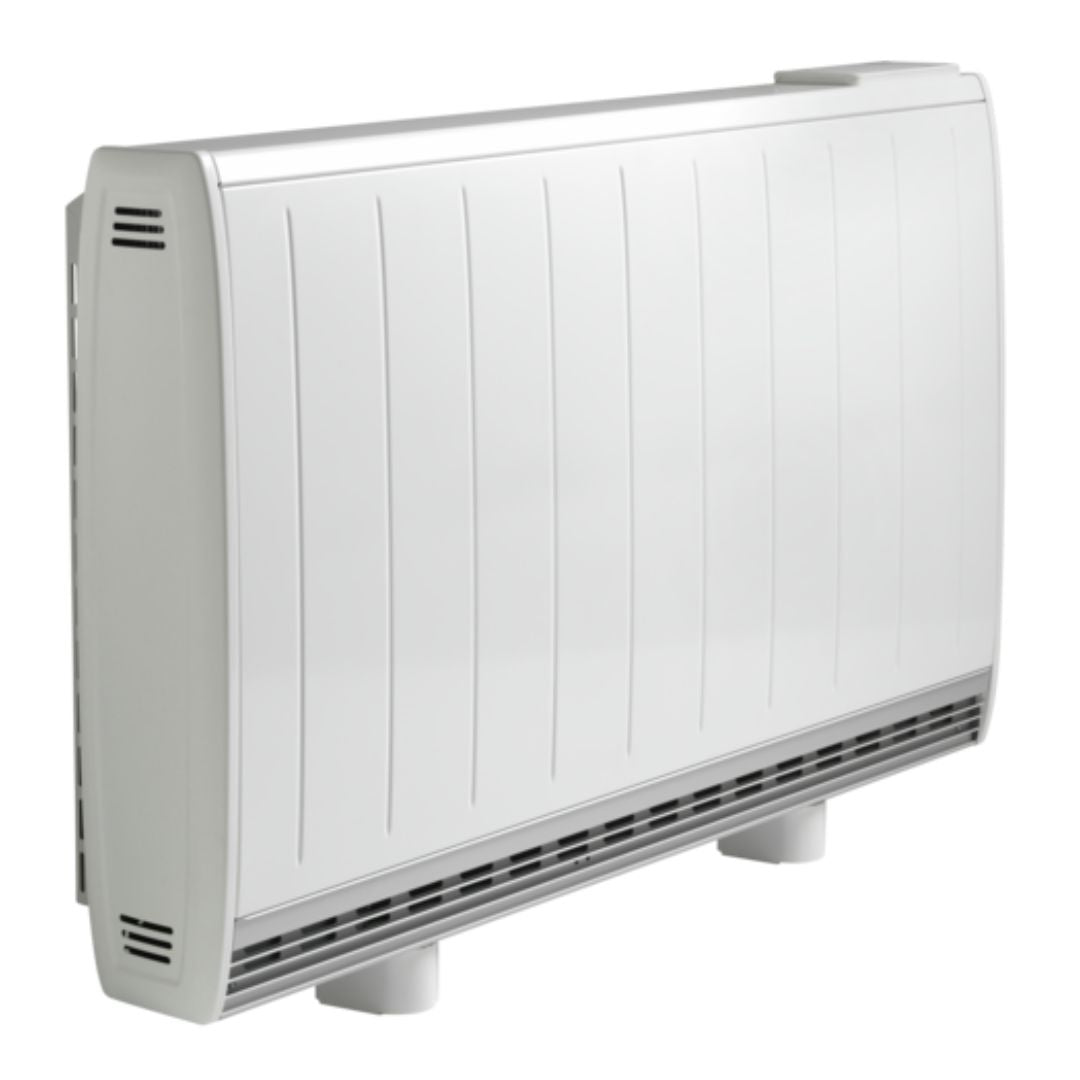

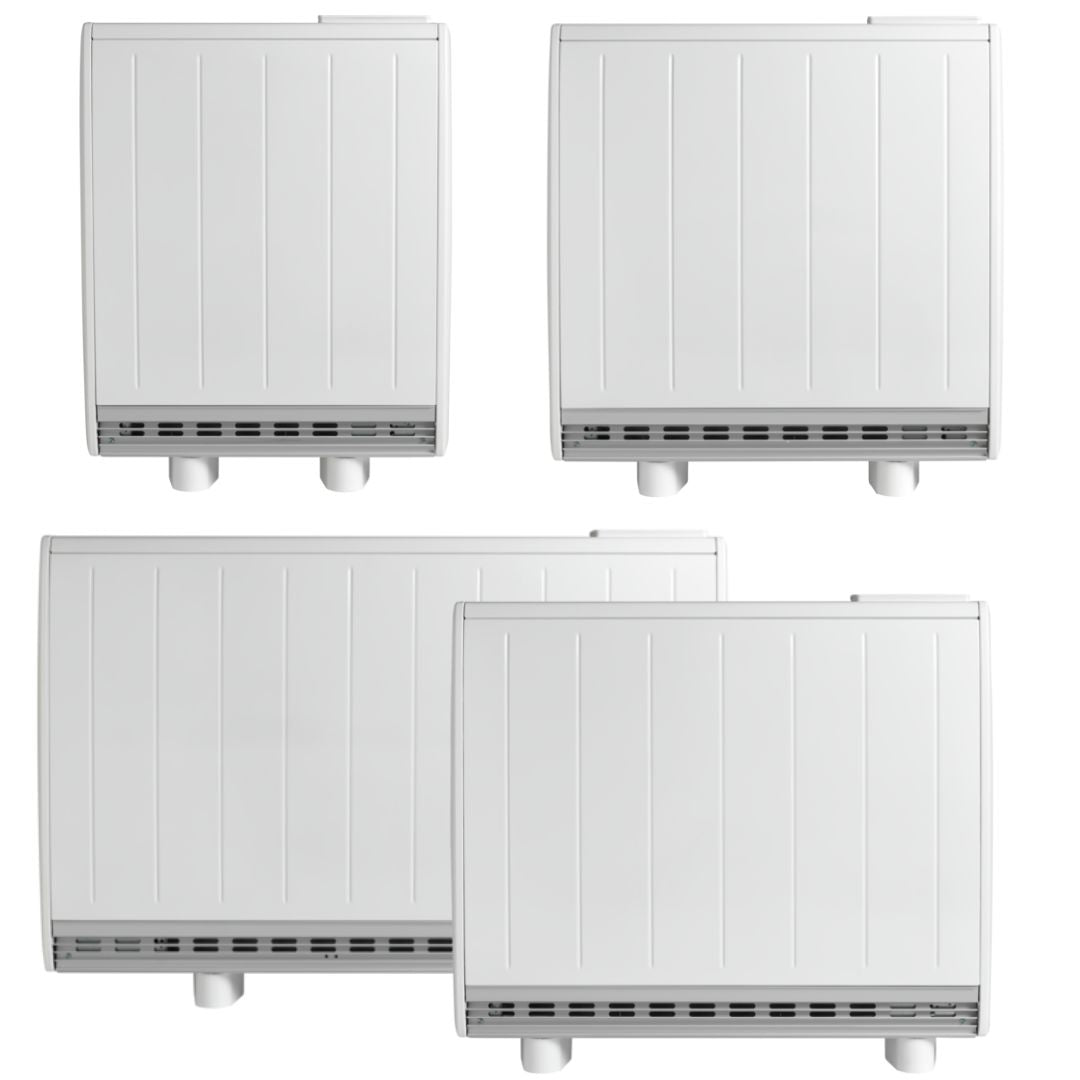

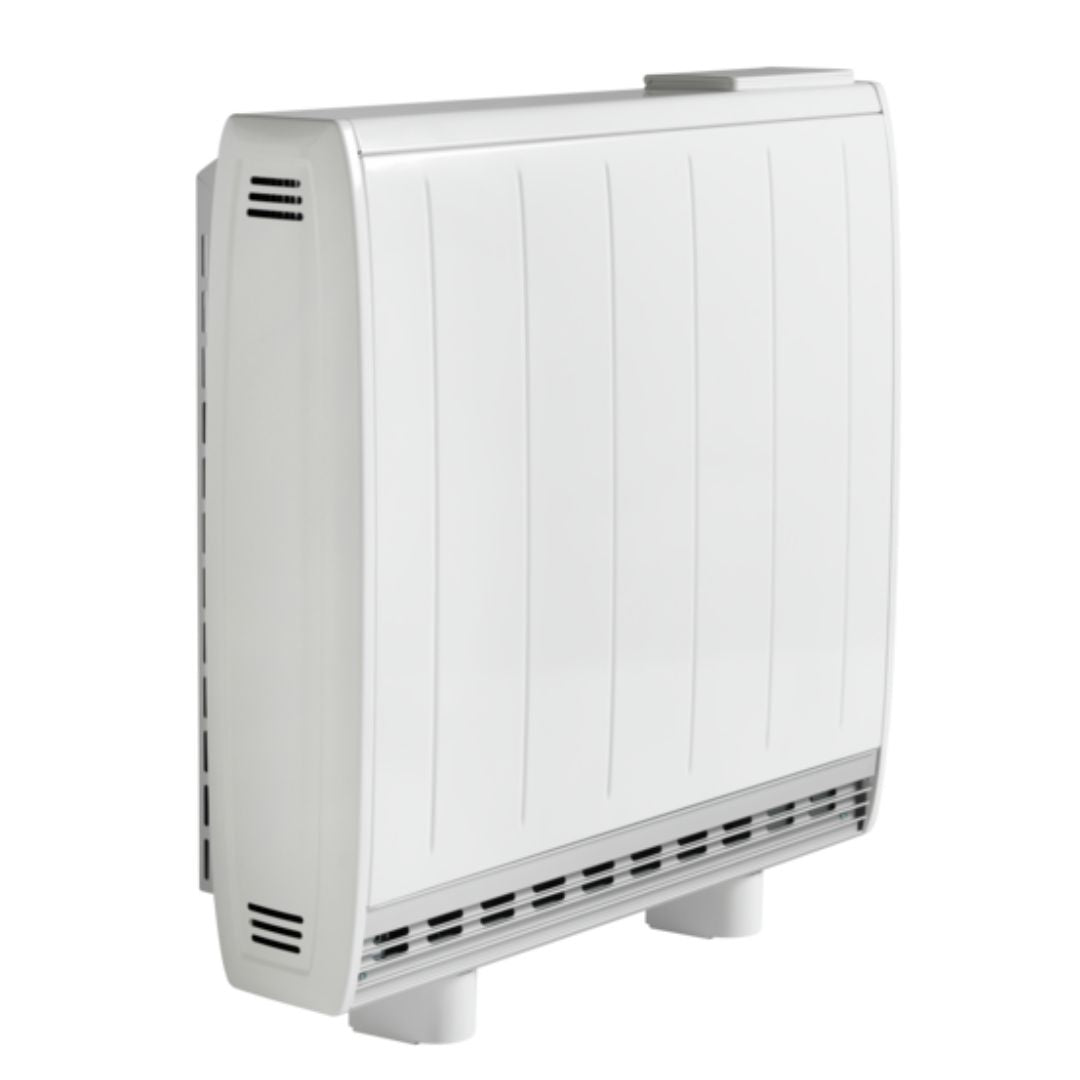

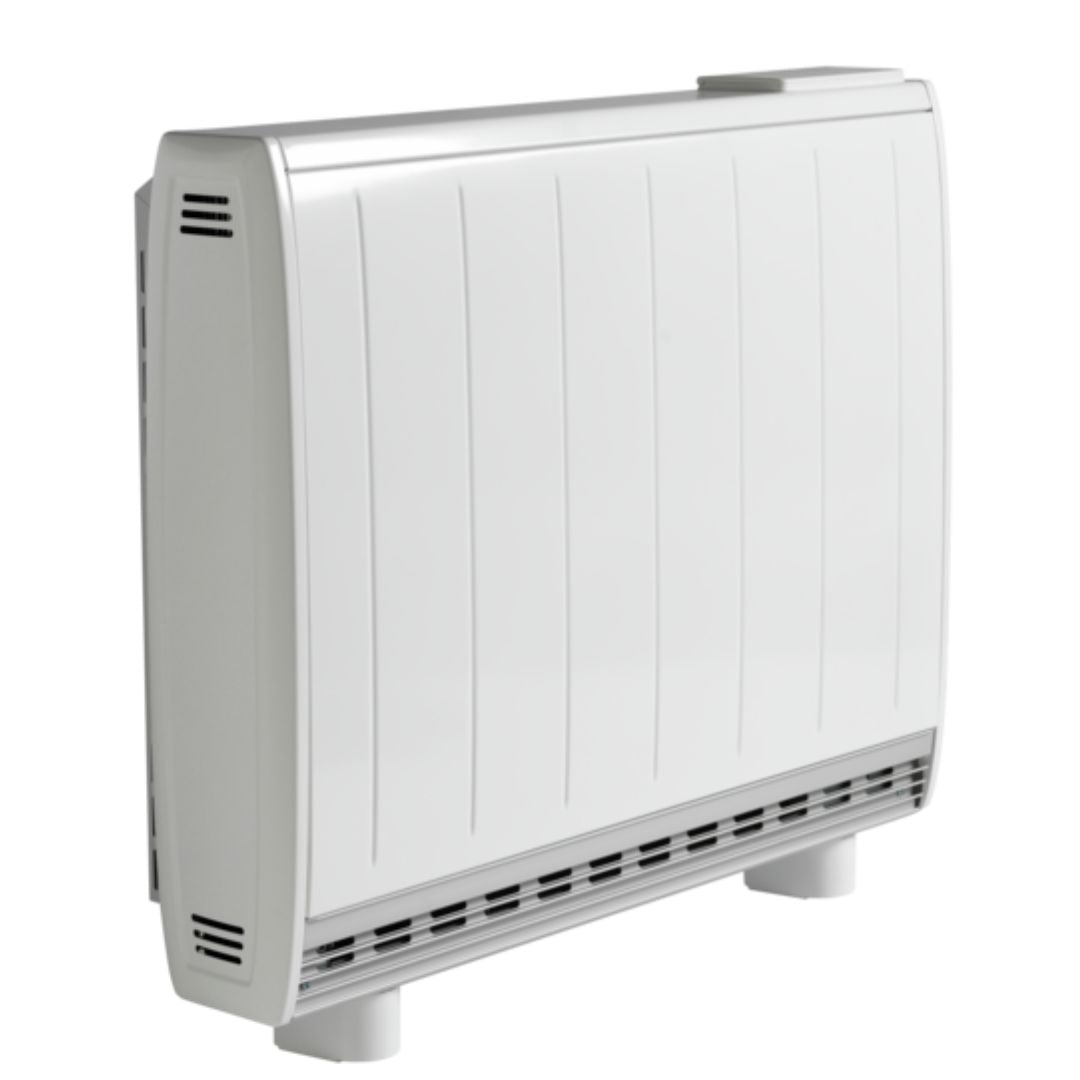

Quantum RF HHR Storage Heater (QM050RF, QM070RF, QM100RF, QM125RF, QM150RF)

Quantum RF is an advanced high heat retention electric storage heater with a clean look and reliable performance. Quantum RF provides low cost, low carbon, electric heating and temperature control.

• Customisable heating with four time & temperature settings per day
• Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day
• Dynamic, intelligent charge calculation stores only the energy you need
• Adaptive start pre-heating and open window detection auto-shutdown
• Away mode prevents damp and mould issues while living space is unoccupied
• Built-in RF module as standard: Smartphone app controllable via the Dimplex Hub (sold separately)
• Lot 20 compliant, accredited to SAP appendix Q and BEAB Approved Mark
• Guarantee: 2 Years standard (10 Years extended available with registration)
• Graphical display with RGB backlight
• Simple Child Lock & Full Heater Lock (PIN-based)
• Dimensions: H730 x D185 x W580(0.5kW)/703(0.70kW)/865(1kW)/1069(1.25 & 1.5kW)mm
• Cable Exit Point: Bottom right
• IPX4

The Dimplex Quantum is a modern, high heat retention (HHR) storage heater that combines style, efficiency, and smart technology. It stores low-cost, off-peak electricity in its highly insulated core overnight, then releases heat throughout the day using an intelligent control system. This ensures the room remains comfortable while minimising energy use and cost.

Quantum’s advanced algorithm learns the user’s habits and room conditions, adjusting how much energy it stores to meet daily needs—cutting both carbon emissions and bills. Its Adaptive Start feature begins heating at the perfect time, while Open Window Detection prevents wasted energy if a window is open.

With three programmable heating schedules, users can easily customize daily settings, including temperature and timing. A user-friendly control panel allows for quick adjustments, and an “Away” mode maintains a low background temperature to prevent dampness during periods of absence.

Quantum also includes a built-in RF module for remote operation via the Dimplex Control app (with the optional Dimplex Hub). It’s ideal for replacing older storage heaters or as a modern solution for energy-efficient heating in social housing.

Designed for comfort, the heater releases warmth from the base, distributing heat evenly with a soft-start fan. It meets Lot 20 energy efficiency standards, is SAP appendix Q approved, and carries the BEAB safety mark.

When paired with compatible smart energy tariffs, such as the British Gas Dimplex Quantum tariff, the system can automatically use renewable, lower-cost electricity—helping users save even more.

Features

Electrical

Guarantee

Dimensions and Weight

Accreditations

Spec Sheet - Dimplex Quantum RF HHR Storage Heater (PDF)
Install and User Manual - Dimplex Quantum RF HHR Storage Heater (PDF)
