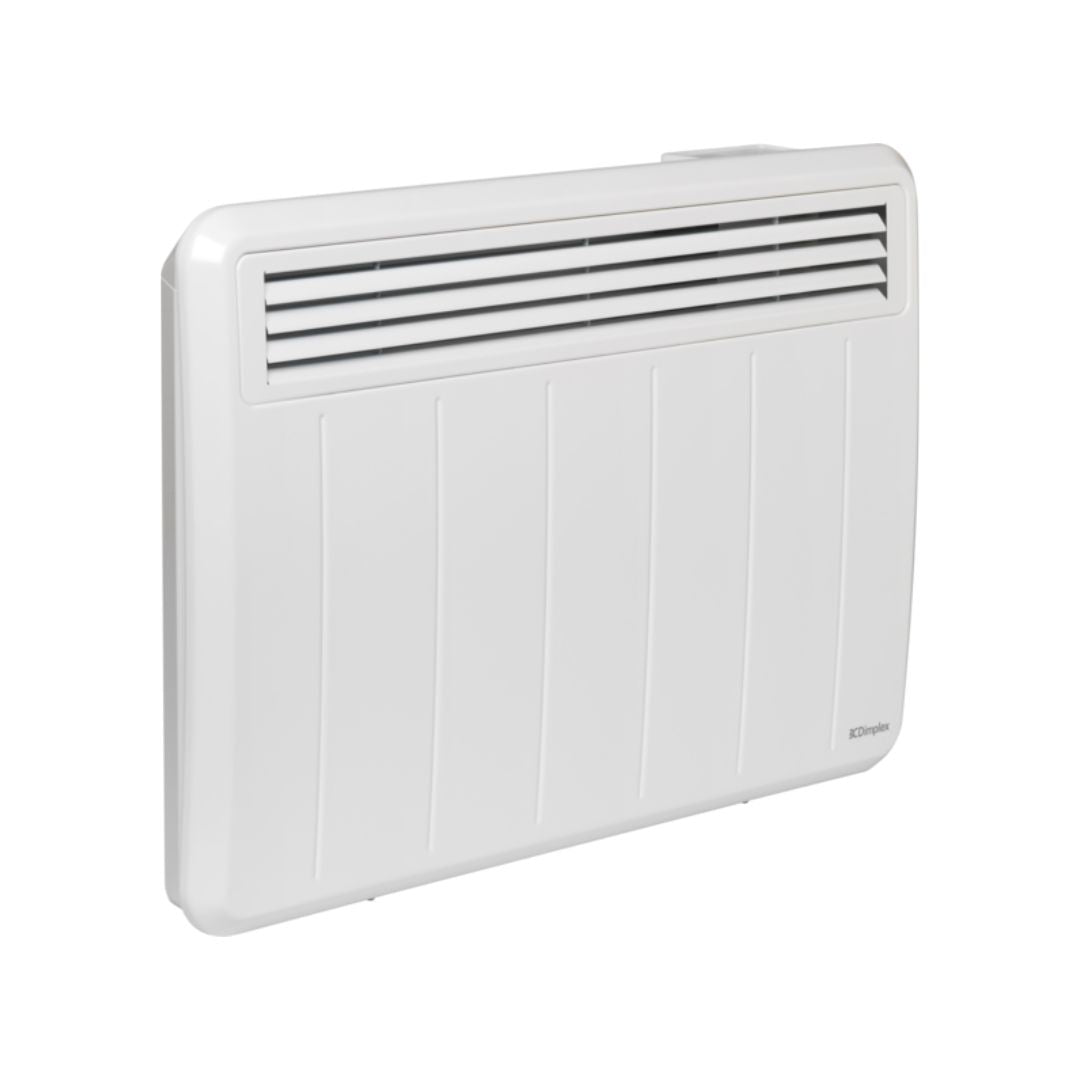

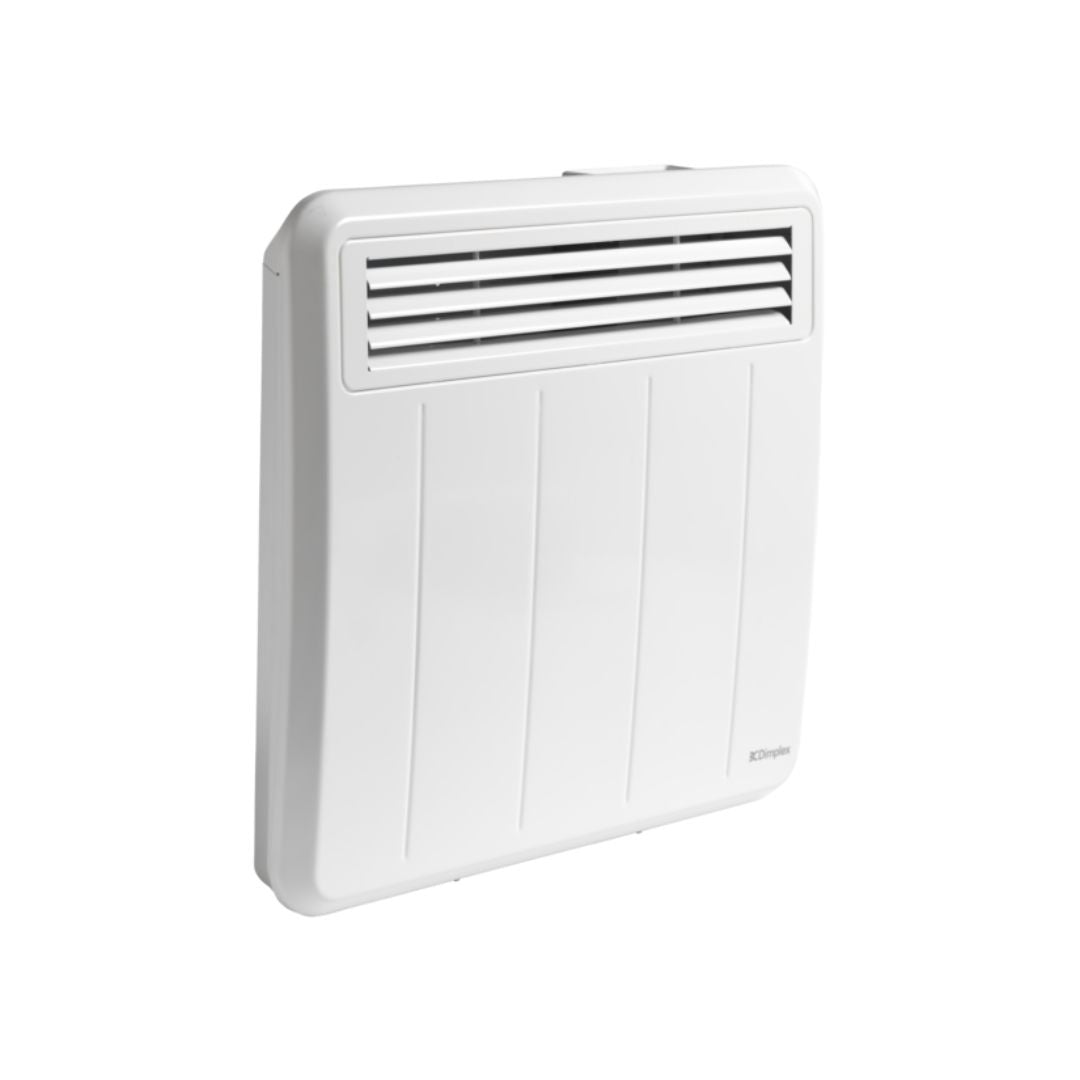

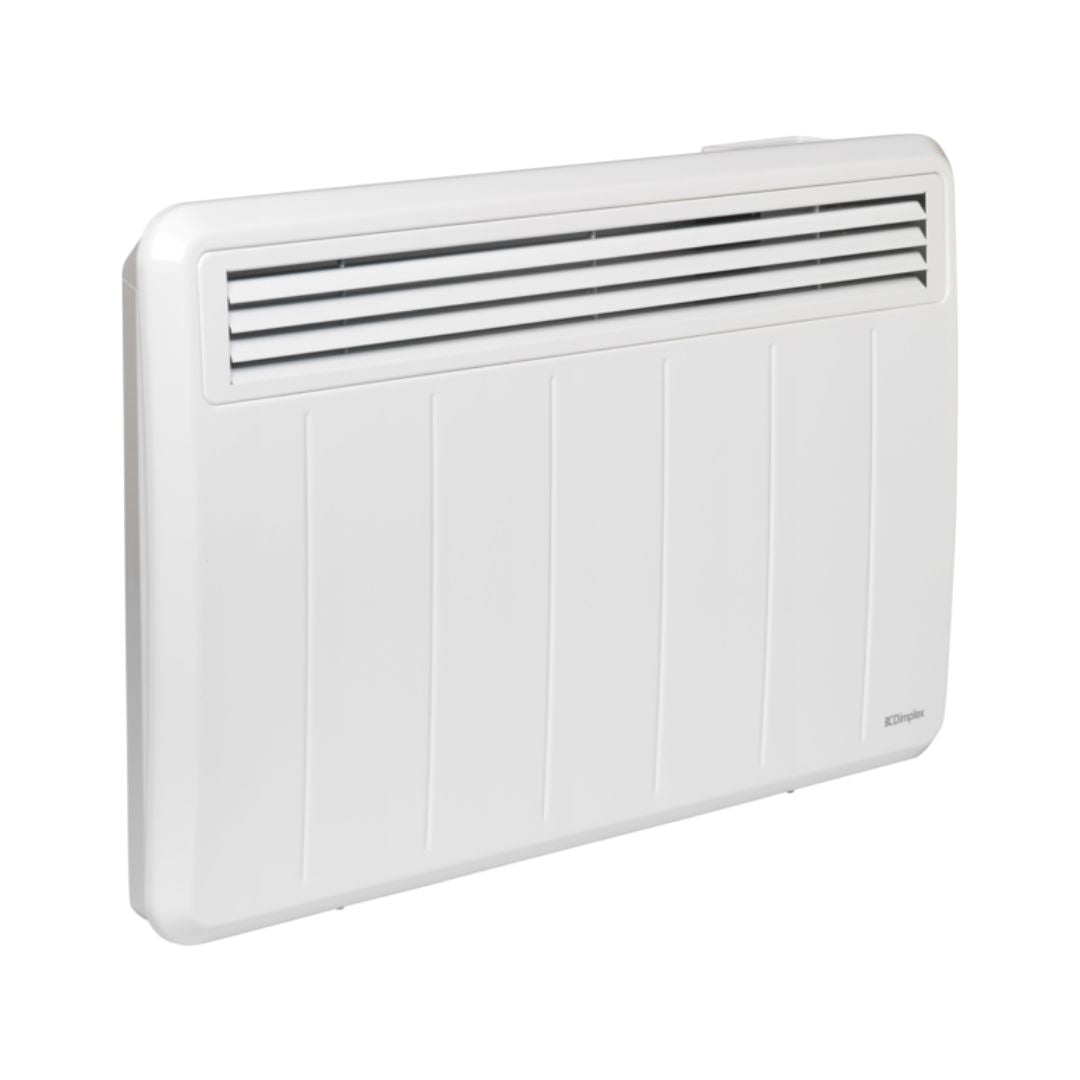

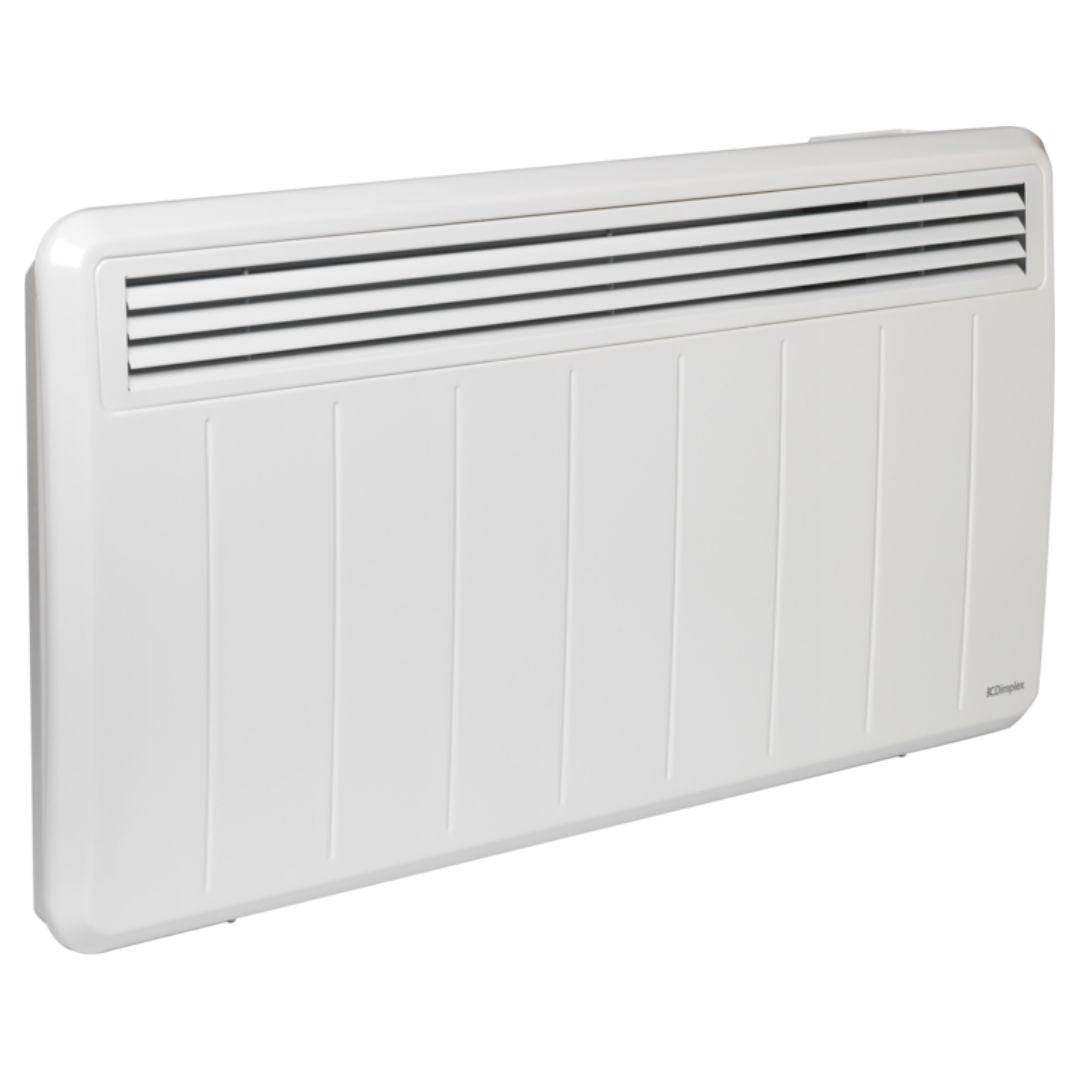

PLXE Panel Heater (PLX050E, PLX075E, PLX100E, PLX125E, PLX150E, PLX200E, PLXC300E)
Available
PLXE Panel Heater (PLX050E, PLX075E, PLX100E, PLX125E, PLX150E, PLX200E, PLXC300E) - 0.5kW is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Summary
Summary
PLXE features intuitive user controls, allowing the programming of multiple 7-day timer profiles via a backlit LCD display and capacitive buttons. A Trusted heating solution with integrated energy saving.

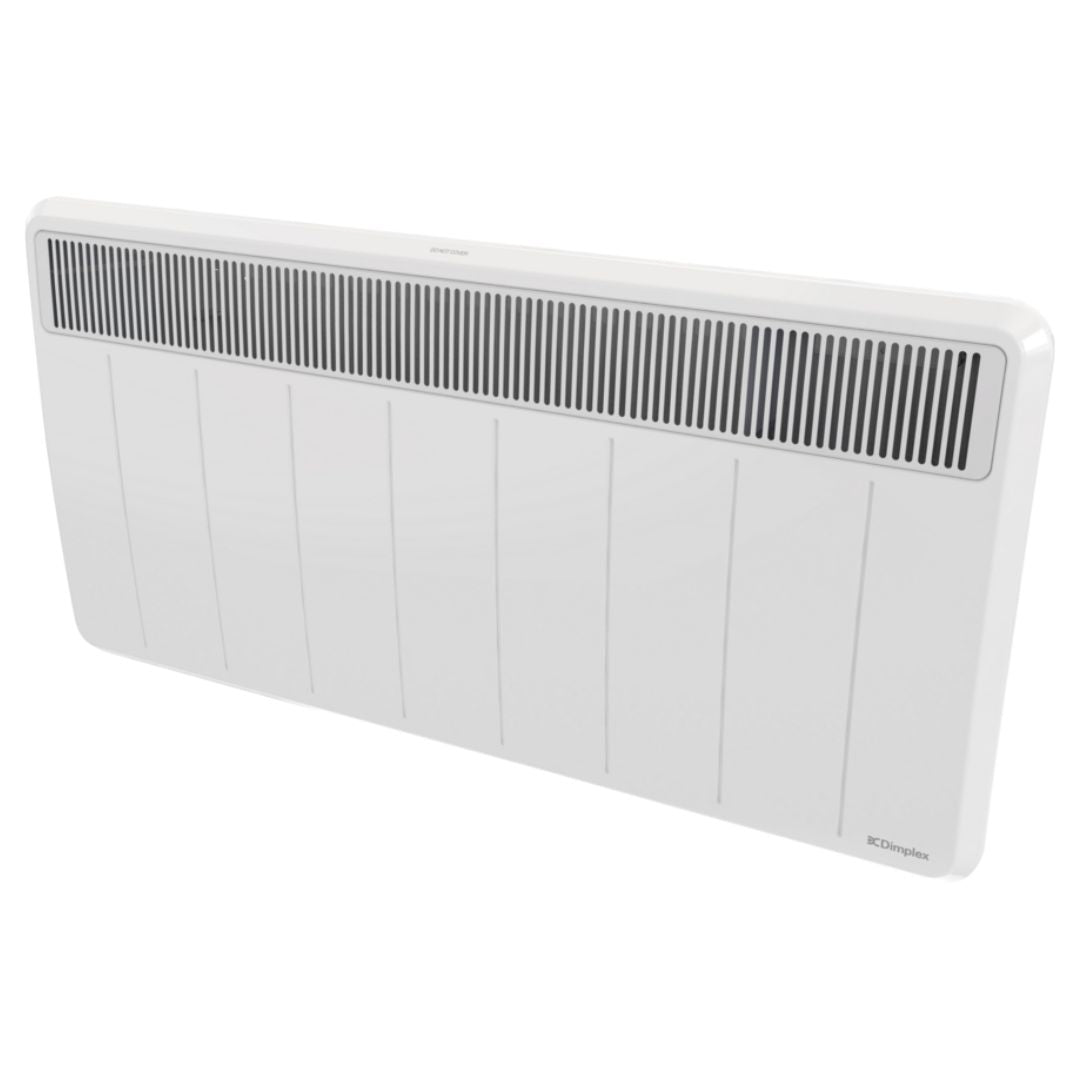

- Modern panel design with louvered forward facing grille for optimum heat circulation and gentle curves for a classic look
- Quiet operation with customisable heating with four time and temperature settings per day ensuring maximum comfort
- Adaptive start pre-heating and open window detection auto-shutdown for increased energy efficiency
- Can be remotely controlled using the Dimplex Control smartphone app when purchased alongside an RF module and a Dimplex Control Hub (sold separately)
- Lot 20 compliant, awarded BEAB
- Guarantee: 2 Years
- Thermal cut-out. Auto reset type. Overheat detection
- Child Lock & Heater Lock (PIN-based)
- Dimensions: H430 x D108/143(3kW) x W450(0.5kW)/620(0.75 & 1kW)/690(1.25 & 1.5kW)/860(2 & 3kW) mm
- Cable Exit Point: Bottom right (supplied with 1.3 M cable length)
- IP24
Description
Description
The PLXE panel heater offers a modern heating solution with intelligent features and a sleek, compact design. Equipped with a user-friendly backlit LCD display and touch-sensitive controls, it allows effortless programming of multiple 7-day schedules for customized comfort.
With its forward-facing louvered grille and smooth, curved profile, the PLXE delivers optimal heat circulation and a timeless aesthetic. Quiet in operation and smart in performance, it includes four programmable time and temperature settings per day, along with Open Window Detection to enhance energy efficiency. Where a traditional panel heater would follow a timer set to 21°C at 7am, with Adaptive Start, the PLXE will begin heating before 7am to achieve the 21°C for the required time.
Remotely manage heating settings via the Dimplex Control app (RF module and Control Hub required, sold separately). Additional features include child and heater lock functions, overheat protection, and Lot 20 compliance for assured performance and safety.

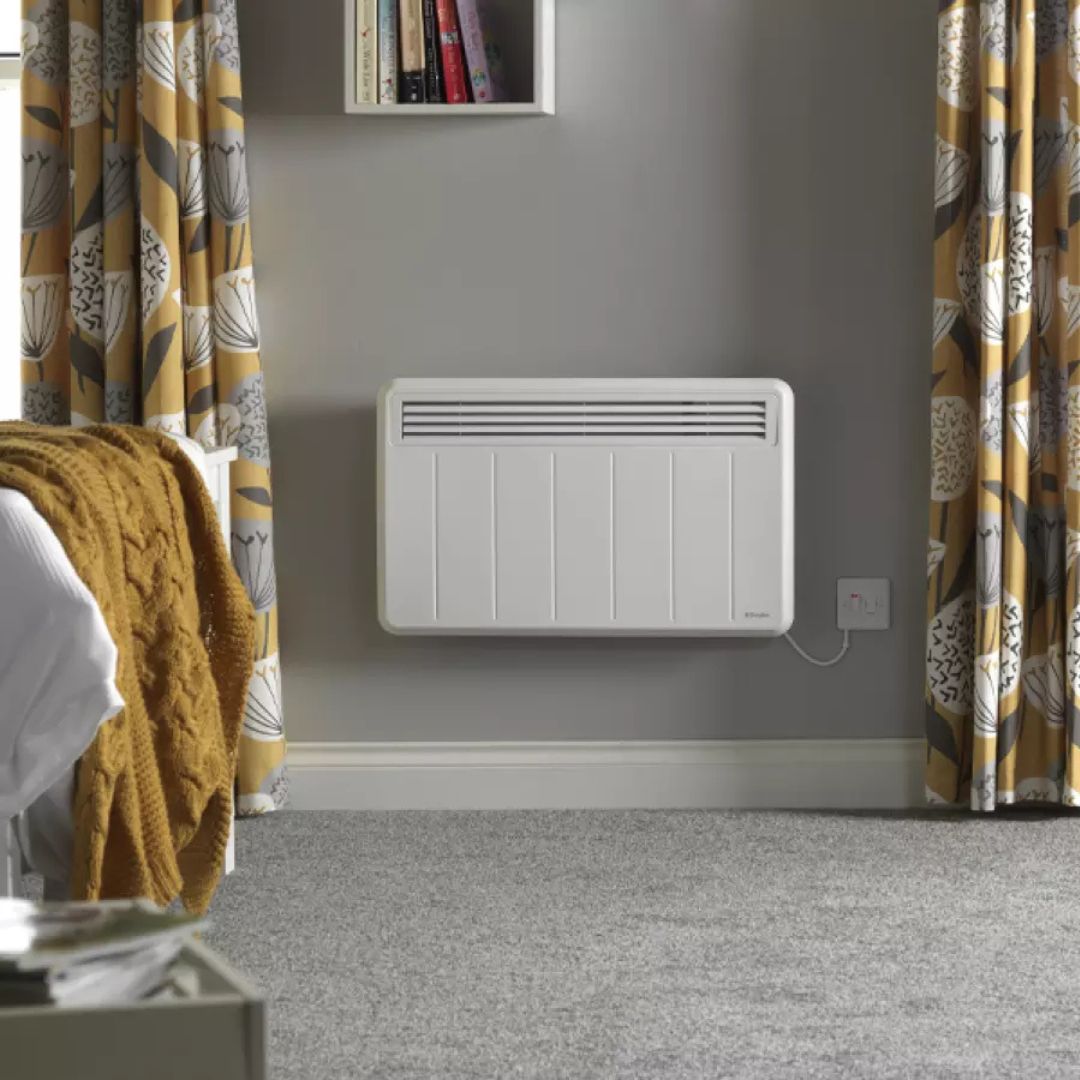

Perfect for residential, care, or light commercial spaces, the PLXE is a dependable choice for modern, energy-conscious heating. Comes with a 2-year guarantee.
Specifications
Specifications
Features
| Auto cut off | Thermal cut-out. Auto reset type. Overheat detection |
|---|---|
| Child lock | Yes |

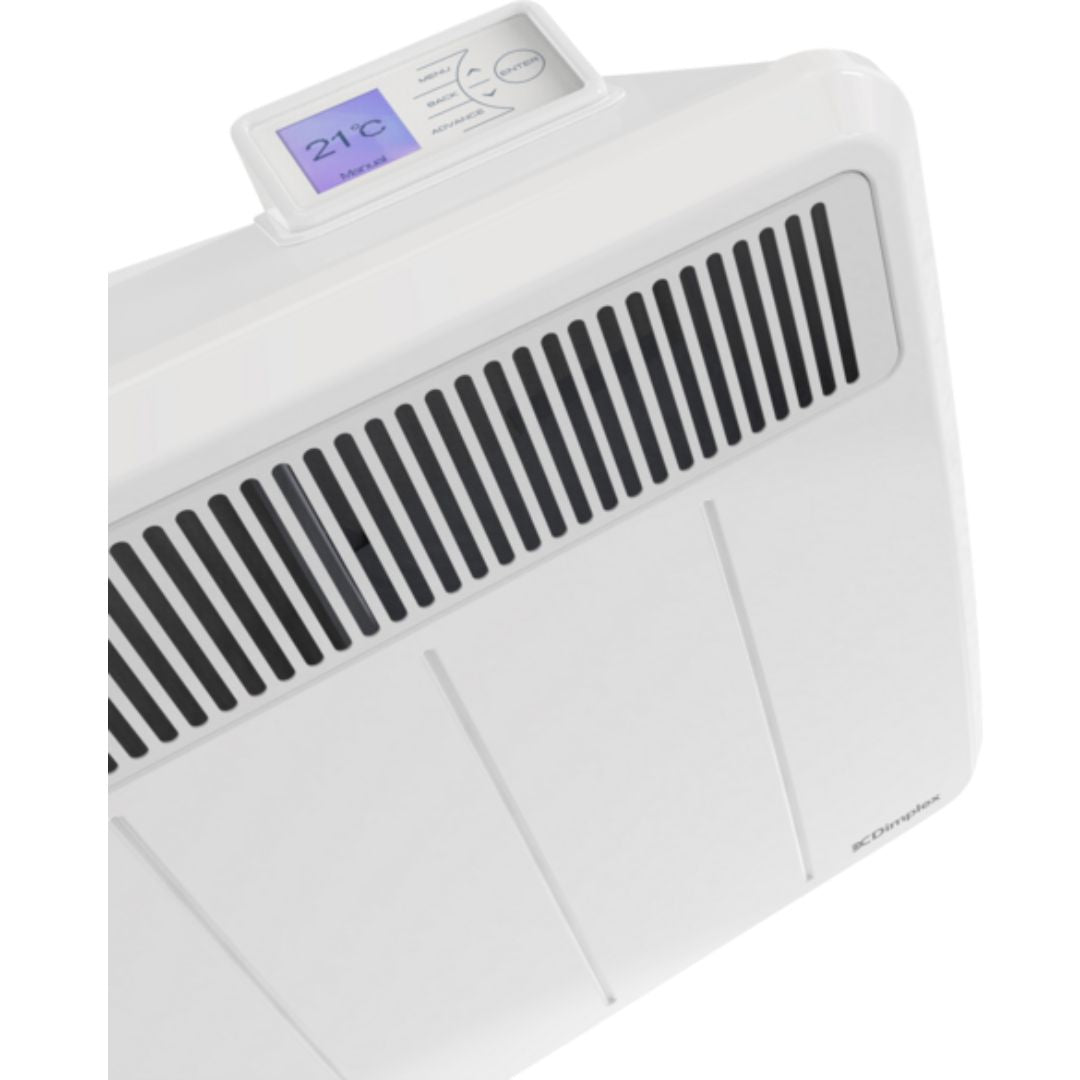

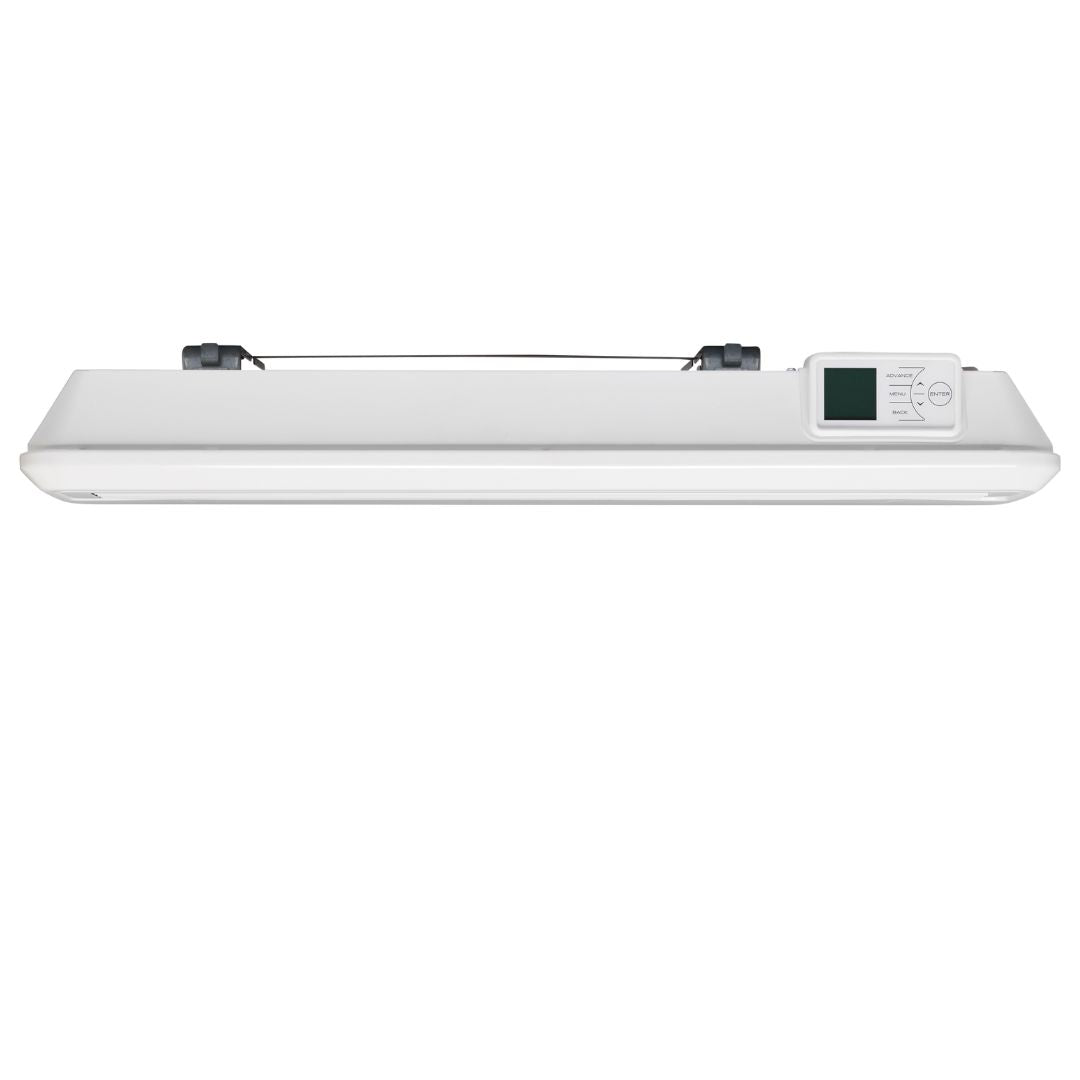

| Display | Graphical display with RGB backlight. Capacitive buttons with audio feedback. User replaceable battery (Coin-Type) |
| Frost protection | Yes |
| Open window detection | Yes |
| Programmes and modes | 7 Day Programmable User Timer, Out All Day, Home All Day. Modes - Eco, Manual, Frost Protect. Adaptive-start. |
| Supplied cable length | 1.3 m |
| Temperature range | 7-30°C |
| Wifi | Smartphone app controllable via the Dimplex Control system (sold separately) |
Electrical
| Electrical supply voltage | 1/N/PE ~230-240 V, 50Hz Class I, with earth wire |
|---|---|
| Ingress protection | IP24 |

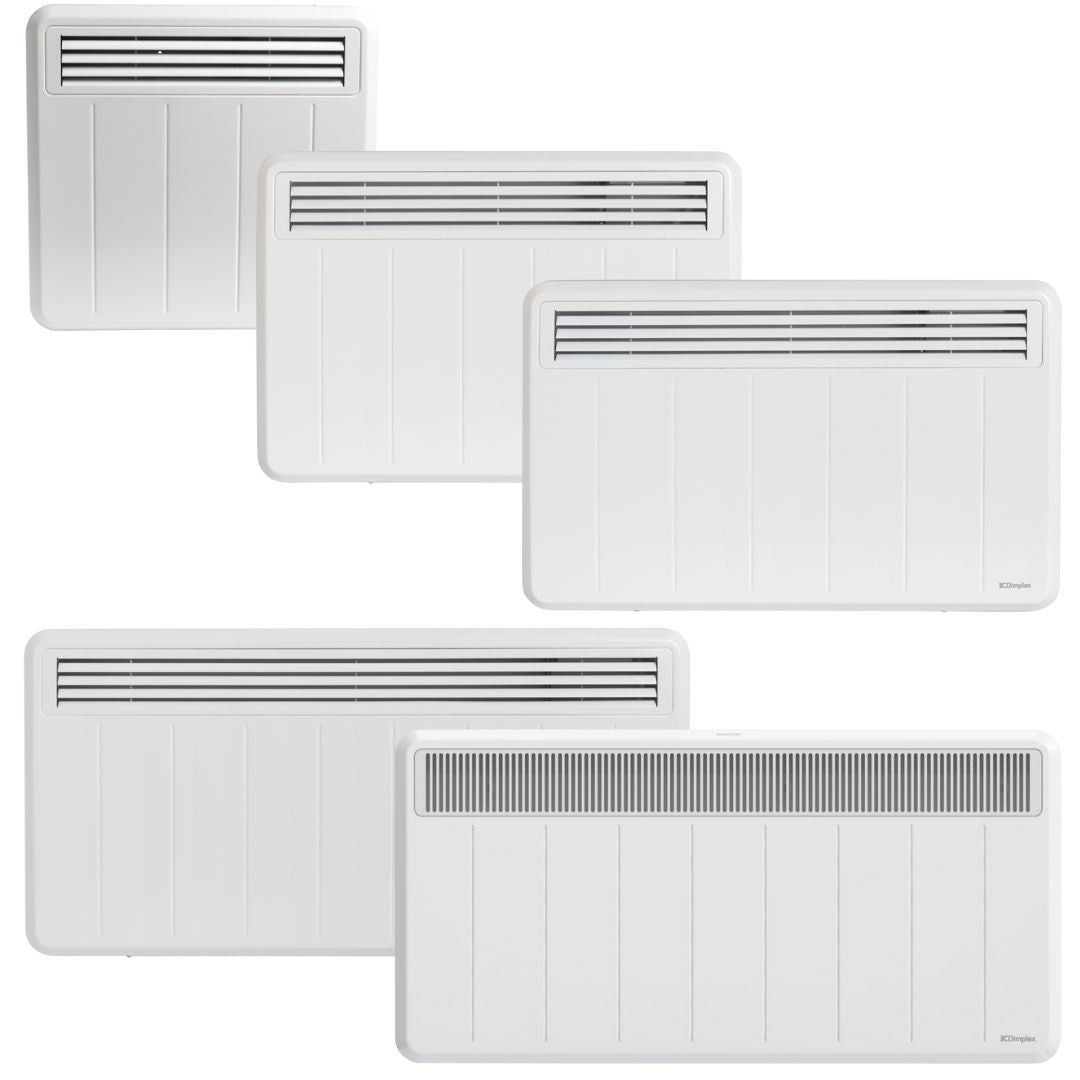

| Rated power | 0.5kW, 0.75kW, 1kW, 1.25kW, 1.5kW, 2kW, 3kW |
Guarantee
| As standard | 2 Years |
|---|
Dimensions and Weight

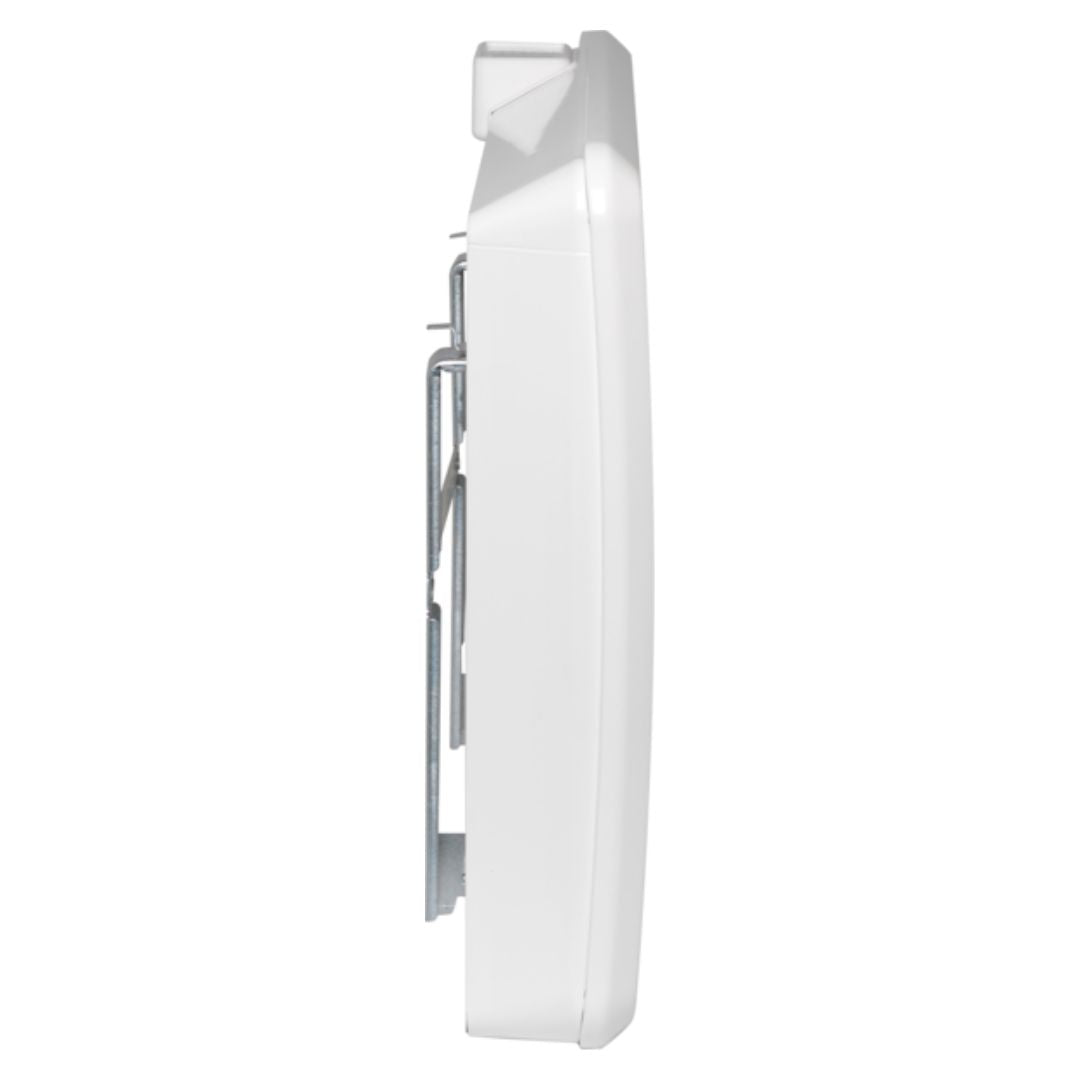

| Depth | 108/143(3kW) mm |
|---|---|
| Height | 430 mm |
| Net weight | 4.6 (0.5kW), 5.9 (0.75kW), 5.9 (1kW), 6.1 (1.25kW), 6.1 (1.5kW), 7.8 (2kW), 8.7 (3kW) Kg |
| Packaging depth | 135/160 (3kW) mm |
| Packaging height | 470 mm |
| Packaging width | 490 (0.5kW), 660 (0.75kW), 660 (1kW), 720 (1.25kW), 720 (1.5kW), 890 (2kW), 890 (3kW) mm |
| Packed weight | 5.1 (0.5kW), 6.5 (0.75kW), 6.5 (1kW), 6.7 (1.25kW), 6.7 (1.5kW), 8.4 (2kW), 9.8 (3kW) Kg |
| Width | 450 (0.5kW), 620 (0.75kW), 620 (1kW), 690 (1.25kW), 690 (1.5kW), 860 (2kW), 860 (3kW) mm |
Accreditations
| Certificates | UKCA, CE, BEAB, Lot 20 compliant |
|---|
